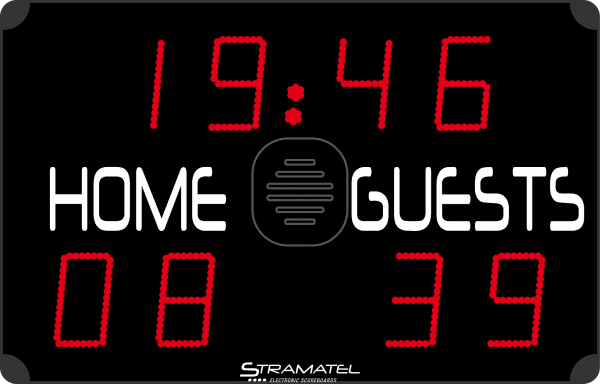

Stramatel Multisport Scoreboard
452 ME 800

£1,275.54 Ex VAT

SES are pleased to offer free shipping on all orders over £120.00.

MULTISPORT Range Eco

BASKETBALL – HANDBALL – VOLLEYBALL – TENNIS -TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY IN LINE HOCKEY- ICE HOCKEY – UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

1 Scoreboard

1 Control console (Android compatible)

1 Carrying case for control consoles

1 Mains cable

Junction box and transmission cables (for cable controlled version)

Operating and installation instructions

(Smartphone not included)



Description

Use : Indoor

Transmission : Radio (868 MHz) or cable

Readability : 60m, angle >160°

Dimensions : 1000 x 640 x 90mm

Weight : 14 kg

Power supply : 230V / 50-60Hz

Power consumed: 60 VA

Protection : Unbreakable mat polycarbonate front face (DIN 18032-3)

Integrated Horn : 116dB at 1m

Mains cable (supplied) : 5 m – Typ: 230V, 3G, 0.75 mm²

Cable controlled: For cable controlled models or radio controlled models with cable set:

Junction Box + 50 m transmission cable (scoreboard/junction box) –

Typ: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)



Display Functions

Score : 2 x 2 red LED digits (15 cm)

Timer/Rest period : 4 red LED digits (15 cm) + blinking points

Day Time : When the scoreboard is not in use



Control Consoles

1 console: (340 x 175 x 60 mm) with LCD screen with 2 lanes of 20 characters (9mm high)

– Main console: management of the main functions

1 charger: Hold the consoles in charge when there are not in use. (Autonomy max 16 h)

Connexion plugs: DIN between the consoles

USB Port: For program update or connect PC keyboard

Programme: 14 sport disciplines + “Free mode” to create your own sport discipline or for additional sports (wrestling, Pelota…)

Multilingual Programme

Stramatel Multisport APP : possibility to control main functions of the scoreboards with an android smartphone / tablet and to share match information by sms, emails…
(Free Application on Google Play)



Options

TV Interface (RS 485): Data transmission for TV broadcasting
Sound Interface: Connection with sport hall sound system – Horn sound amplifier

DCF or GPS Antenna: For accurate time synchronisation
Cable set: Cable mode for radio controlled scoreboard

Led Strip : Electric light to be installed behind the backboard, connected with

the 24 second shot clocks to light up at the end of each period.
MPA : Ball possession indicator (FIBA Level 1)

Stand Wheel Stand

Shot clocks SC24 Pocket keyboard Transport case
